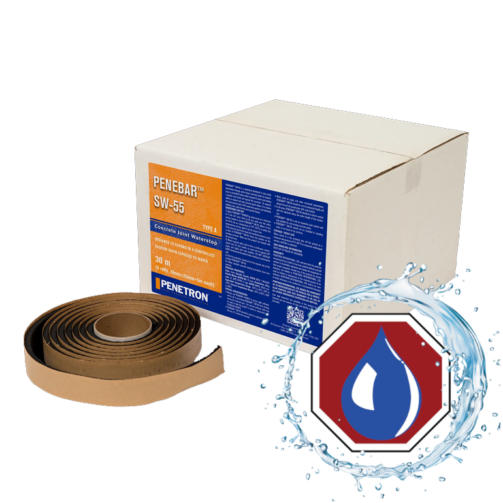

Penebar SW55 TYPE A (30m)

DESCRIPTION

PENEBAR™ SW-55 is a waterstop developed to stop water penetration through cast-in-place concrete
joints by expanding in a controlled fashion when exposed to water and making a positive seal inside and
against the concrete. Its superior ability to expand and seal concrete joints allows it to replace the more
passive tied in PVC waterstop systems and eliminate welding irons, split-forming and special shapes.

RECOMMENDED FOR

PENEBAR™ SW-55 can be applied to non-moving, concrete construction joints for both horizontal and
vertical applications. It can be used on new or existing concrete, irregular surfaces and through-wall or
slab penetrations such as pipes, utility lines, piling and steel members.

Other typical applications that are ideal for PENEBAR™ SW-55 are: underground structures, basements,
precast panels, tunnels, new and existing concrete, manholes, lift pits, retaining walls, concrete pipe and
storage tanks.

SPECIAL CONSIDERATIONS

• Always use PENEBAR™ PRIMER to ensure tight adhesion and to aid in preventing PENEBAR™ SW-55
  from moving during the concrete pour. For vertical surfaces, nails may be used to hold the product in place
  in conjunction with PENEBAR™ PRIMER.
• PENEBAR™ SW-55 should be used at a minimum depth of 50 mm (2”) inside the concrete.
• When used on pipes and other structural penetrations, PENEBAR™ SW-55 should be cut to measured
  length and placed around the penetration with ends butted.
• In all cases, PENEBAR™ SW-55 should be in direct contact with the substrate along the entire length of
  the installation.
• PENEBAR™ SW-55 is not an expansion joint sealant and only suitable for non-moving concrete joints.
• PENEBAR™ SW-55 should not be installed in standing water or on frozen or icy surfaces.
